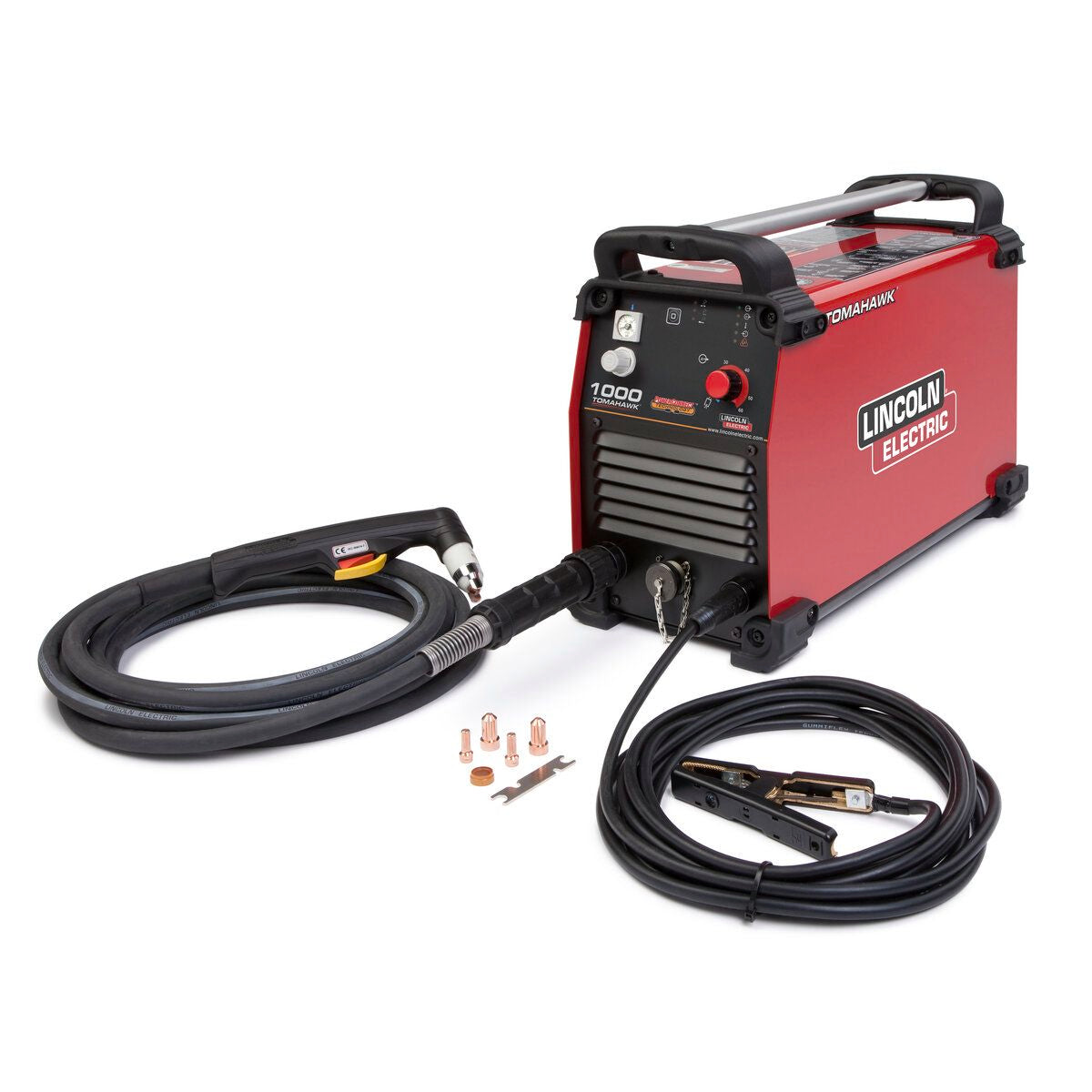

Tomahawk® 1000 Plasma Cutter with 25 ft (7.6 m) Hand Torch
-
300 people are viewing this right now -
34 people have this in their carts right now -
153 people has purchased this in 7 days
Original price was: GBP1,890.67.GBP130.33Current price is: GBP130.33.
The Tomahawk® 1000 plasma cutting system is ideal for plasma cutting and gouging materials including mild steel. brass. stainless steel. copper. and aluminum.
Features & Benefits
Plasma Cutting for Production Capacity
The Tomahawk 1000 plasma cutting system is portable enough to use on the jobsite and rugged enough to use on up to one inch material in a production environment. Hook up the compressed air. grab the torch and start cutting.
Features
- PowerConnect® Technology – Automatically senses and adjusts to input power for a range of 200 up to 600 volts. single or three phase. 50 or 60 hertz. Cutting output remains constant throughout the entire input voltage range.
- Continuous Output Control – Focus the arc for different material thicknesses.
- Touch Start™ System – Reliable plasma arc initiation without high frequency.
- Front Panel Purge Control – Makes it easy to set the air flow rate without initiating the plasma arc.
- Cool Operation. Long Consumable Life- New electrode and nozzle design save you money in the long run
- Added Safety – Our Parts-in-Place™ – System detects correct installation of consumables and torch.
- Engine Drive Compatible – Select a Lincoln Electric Ranger® or Vantage® to power your Tomahawk® in remote locations.
- Optional Machine Torch – Available for use on CNC plasma cutting tables.
Processes
Plasma Cutting & Gouging
Air Pressure Required
87-109 PSI
Compressor Included
No
Digital Display
No
Dimensions (mm)(HxWxD)
15.2 x 8.5 x 22.1
Duty Cycle
50% 60A@104V | 100% 40A@96V
Included in Package
LC65 hand torch 25 ft. (7.5 m) cable; Air regulator and pressure gauge; Internal water separator; Work clamp and cable; Spare consumables; Input power cord
Model
Tomahawk® 1000
Weight (lb)
45 LB
Input Power
208-575/1/3/50/60
Input Current
37.8A
Polarity
DC
Output Range
20-60A
Rated Output
40A@96V 100%|60A@104V 50%
Typical Application
On-site maintenance; Service tasks; Construction sites; Demolition work; Rental; Production/Fabrication; Robotic plasma cutting
Maximum Cut
1 in. (25.4 mm)
Recommended Cut
3/4 in. (19.01 mm)
Severance Cut
1 1/4 in. (31.75 mm)
Dimensions
8.5in x 15.2in x 22.1in (215mm x 385mm x 561mm)
Warranty
3 year warranty
Weight
70lbs. (31.752kg)
- Pilot Current: 20A
- Air Pressure Required: 87 – 109 psi (6 -7.5 Bar)
- Air Flow Rate: 80 psi @ 275 – SCFH. 5.5 Bar @ 130 Liters / min.
- LC65 hand torch and 25 ft. (7.5 m) cable with electrode | nozzle 60A | swirl ring | retaining cap | drag spacer. Air regulator and pressure gauge. Internal water separator. Work clamp and cable. Spare consumables include (2) electrodes | (2) nozzles | (1) swirl ring. Input power cord
