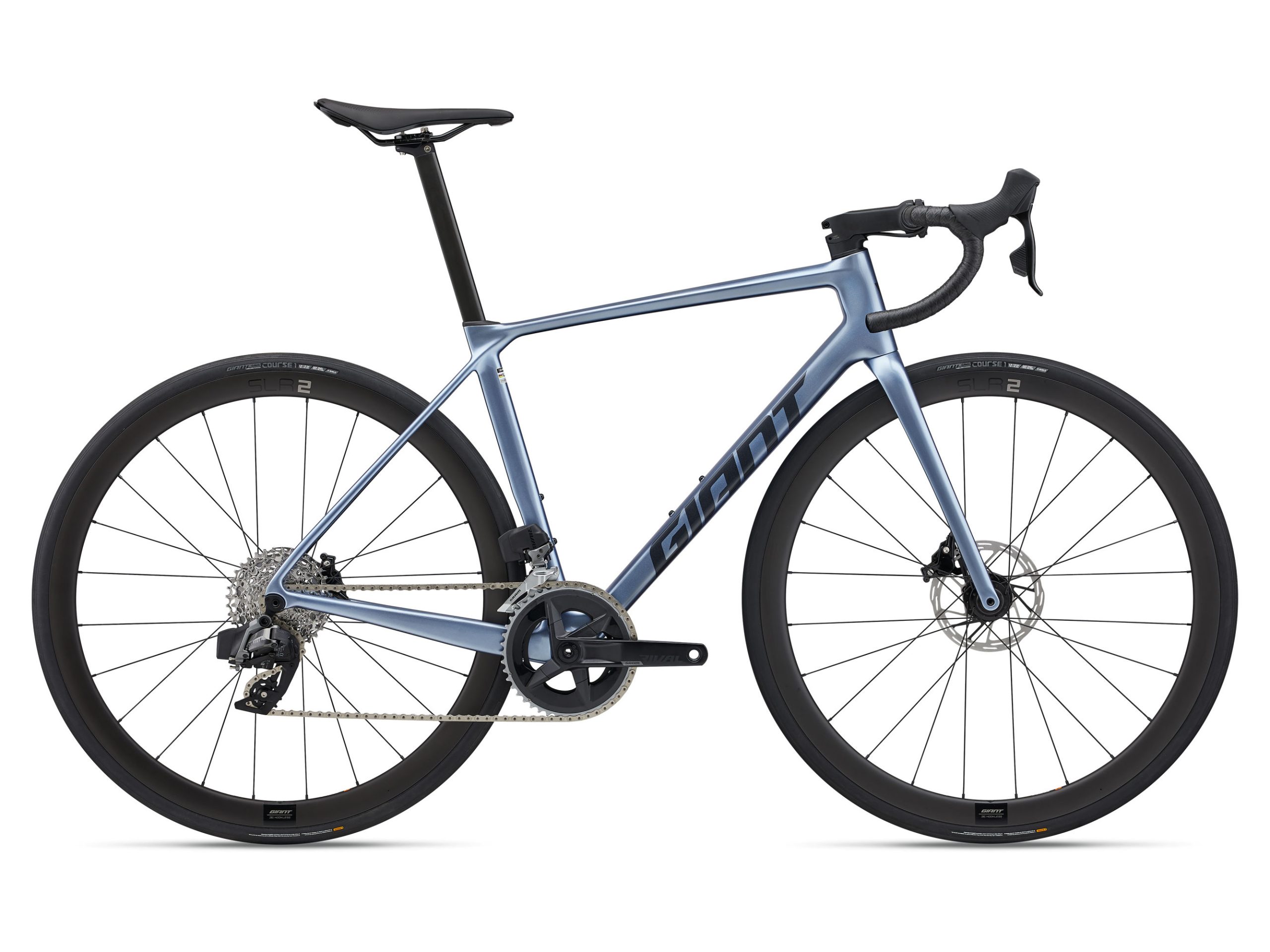

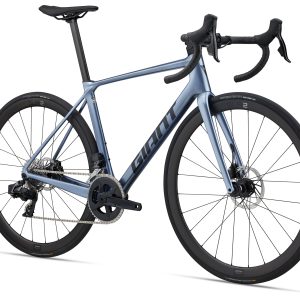

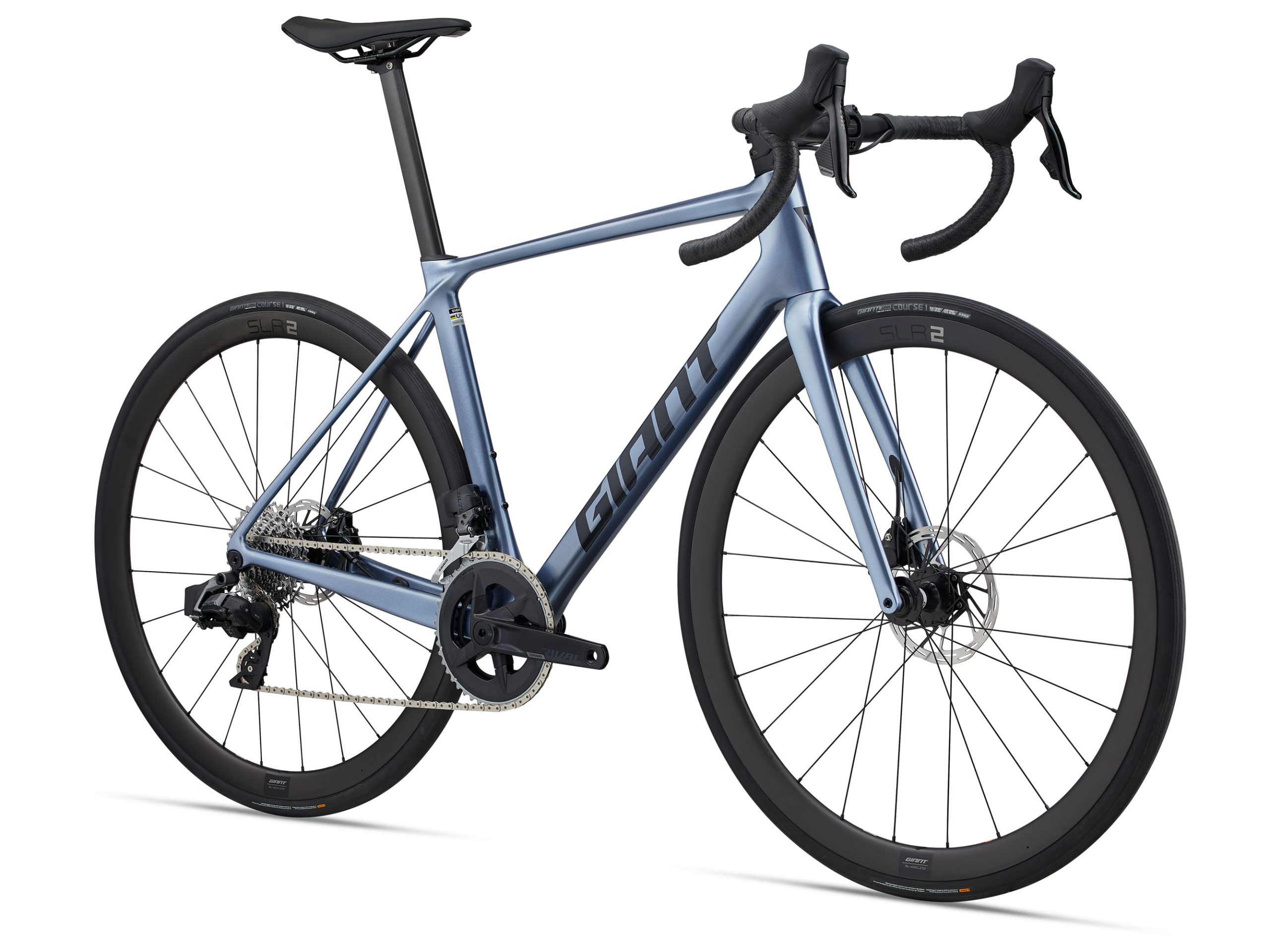

TCR Advanced 0 AXS
-
112 people are viewing this right now -
20 people have this in their carts right now -
420 people has purchased this in 7 days
GBP103.99 – GBP133.99
MADE FASTER
Newly integrated components including the Contact AeroLight stem create a sleeker. more aero profile. The Variant seatpost adds just enough compliance for a balanced. race-tuned feel on the road. while generous tyre clearance (up to 33mm) and compliant wheels keep you rolling with speed on smooth or bumpy roads.
ADVANCED COMPOSITE
High-performance grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
TRUNCATED ELLIPSE TUBING
Strategically engineered airfoil sections in the frame and fork. developed through CFD and wind-tunnel testing. improve aerodynamic efficiency. reducing wind drag at a wide range of yaw angles compared to traditional teardrop shaped tubes.
INTERNAL CABLE ROUTING
Frame/handlebar/stem feature unique cable porting for sleek. non-cluttered appearance and easier adjustability.
COMPOSITE FORK
Advanced-grade composite fork features a symmetric design and aero shaping. along with disc-brake integration and increased clearance for tires up to 33mm. The design makes it lighter. stiffer and more aerodynamic.

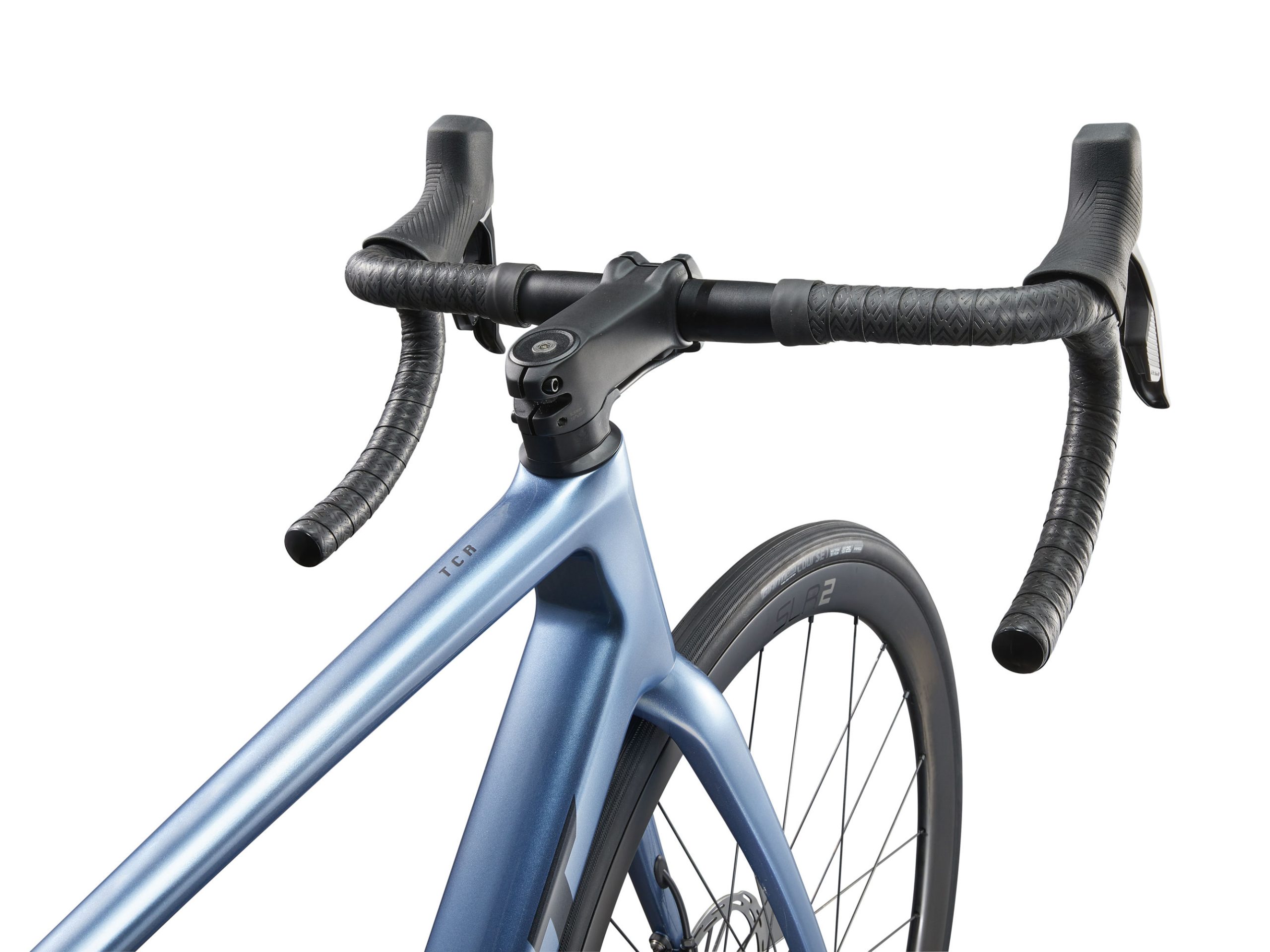

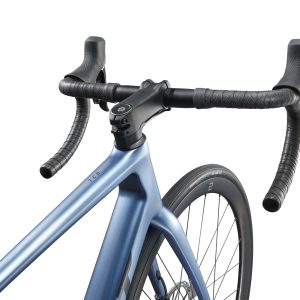

AERODYNAMIC HANDLEBAR AND STEM
Lightweight handlebar and stem feature aero shaping including flat handlebar tops with raised edges to help riders maintain a stable aero position. Internal cable routing further improves aerodynamics while maintaining ease of setup and adjustment.
VARIANT SEATPOST
This proprietary seatpost design offers the perfect balance of light weight. aerodynamic performance and compliance. along with easy saddle installation and adjustment.
MEGADRIVE
An oversized down tube and top tube provide superior front end lateral and torsional stiffness. The precisely engineered. rectangular shaped down tube yields unprecedented steering precision and pedaling performance.

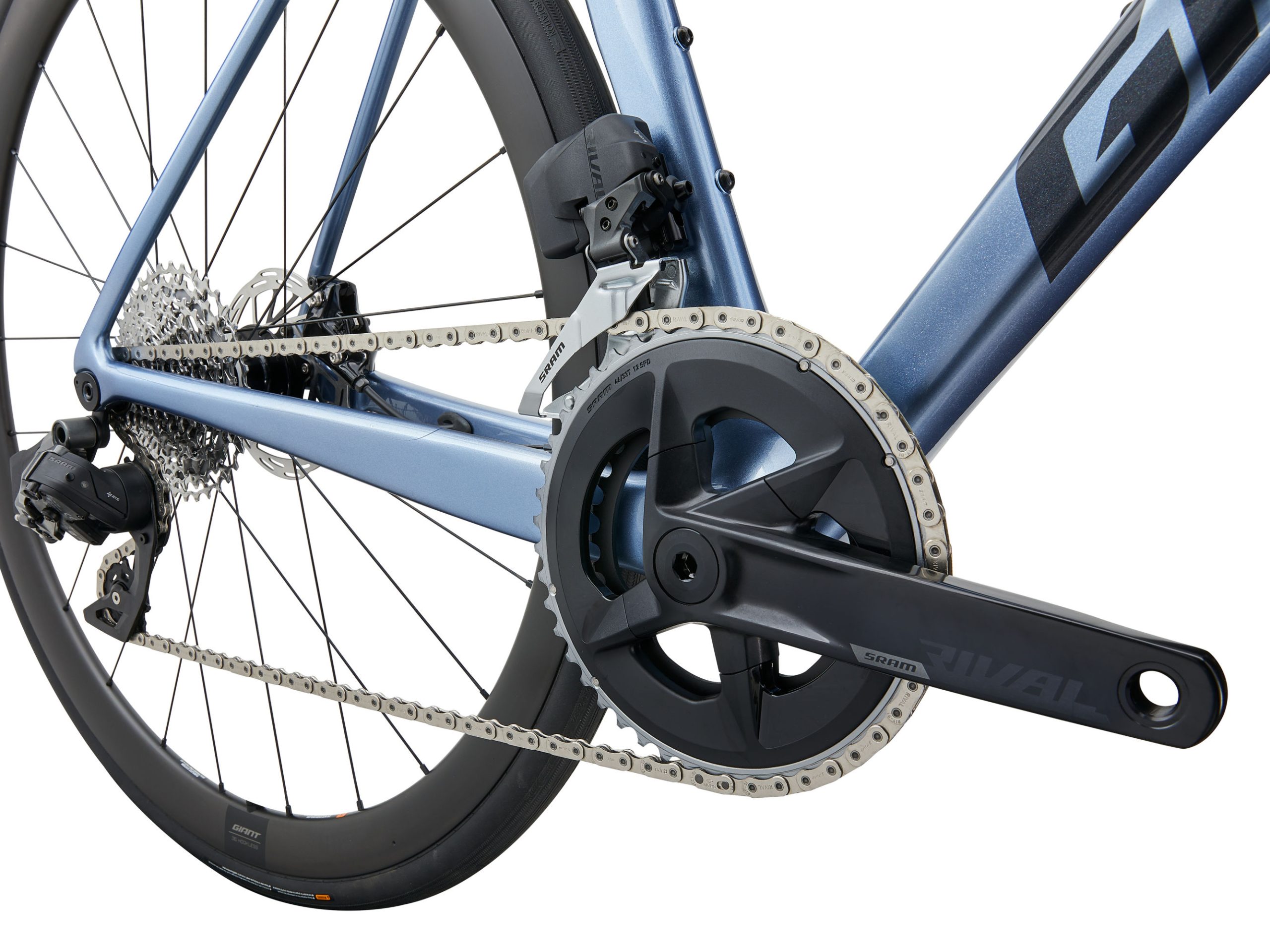

POWERCORE
The oversized bottom bracket area features a fully integrated 86mm wide design. Symmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
DISC-BRAKE INTEGRATION
The frame and fork are engineered with flat-mount disc-brake technology for powerful. consistent braking performance in all conditions.
Techs & Features
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
-
- S
- 165 cm
175 cm
-
- M
- 171 cm 181 cm
-
- ML
- 177 cm 187 cm
-
- L
- 183 cm 193 cm
-
- XL
- 189 cm 199 cm
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
| S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) | 445 | 470 | 500 | 530 | 560 |
| B | Seat Tube Angle | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C | Top Tube Length (mm) | 535 | 550 | 565 | 580 | 600 |
| D | Head Tube Length (mm) | 130 | 145 | 165 | 185 | 200 |
| E | Head Tube Angle | 72.3° | 73.5° | 73.0° | 73.0° | 72.5° |
| F | Fork Rake (mm) | 45 | 45 | 45 | 45 | 45 |
| G | Trail (mm) | 64 | 59 | 59 | 59 | 59 |
| H | Wheelbase (mm) | 977 | 980 | 991 | 1006 | 1020 |
| I | Chain Stay Length (mm) | 405 | 405 | 405 | 405 | 405 |
| J | Bottom Bracket Drop (mm) | 69.5 | 69.5 | 67 | 67 | 67 |
| K | Stack (mm) | 528 | 545 | 562 | 581 | 596 |
| L | Reach (mm) | 383 | 388 | 393 | 402 | 412 |
| M | Stand Over Height (mm) | 722 | 743 | 771 | 798 | 822 |
| N | Handlebar Width (mm) | 400 | 420 | 420 | 440 | 440 |
| O | Stem Length (mm) | 90 | 100 | 110 | 110 | 120 |
| P | Crank Length (mm) | 170 | 172.5 | 172.5 | 175 | 175 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C |
| size | L, M, ML, S |
|---|
